Roller Chain Sprockets – Plain & Finished Bore and Single & Double Pitch

Roller chain sprockets are important components and accessories in the whole conveyor belt system. They are used combined with roller chains as drive system to ensure the stable and smooth conveying and transmitting. The sprockets are designed to match the roller chains as drive system for stable and smooth conveying and transmitting. The roller chain sprockets can be made of carbon steel, stainless steel and other materials in different diameters, bore size, teeth quantity and styles. As for the detailed specifications, you can get them in three ways:

  • Refer to the PDF profile: Roller chain sprockets technique data.
  • Contact our sales representatives for common and recommended types and specs.
  • Send us your requirements and we will design it for you.

Roller chain sprocket types

The roller chain sprockets can be divided into three styles with different outer diameters and technique data.

The type A roller chain sprocket has the simplest structure, which is plain and without any extensions on both side. It offers a stable and secure attachment to the shaft. The type B and type C roller chain sprockets have one hub extensions on one or both side to provide stability, and allow for the use of full-depth keyways and standard setscrews to attach the sprocket. They can also accommodate a wide range of shafts.

  • Type A. Plain and without any extensions on both side.
  • Type B. One hub extension on one side.
  • Type C. One hub extension on each side.
A stainless steel type A roller chain sprocket with plain surface standing on the white background.
RCS-01: Type A – roller chain sprocket.

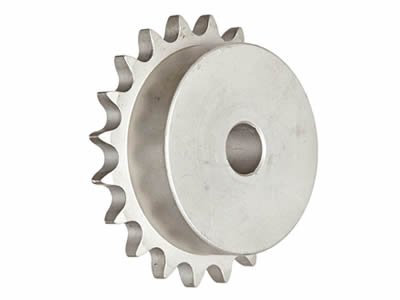

A stainless steel type B roller chain sprocket with hub extension on right side standing on the white background.
RCS-02: Type B – roller chain sprocket.
A carbon steel type C roller chain sprocket with hub extension on both side standing on the white background.
RCS-03: Type C – roller chain sprocket.

ANSI single pitch sprockets

A piece of stainless steel type B plain bore ANSI roller chain sprocket on the white background.
RCS-04: Plain bore – ANSI roller chain sprocket.

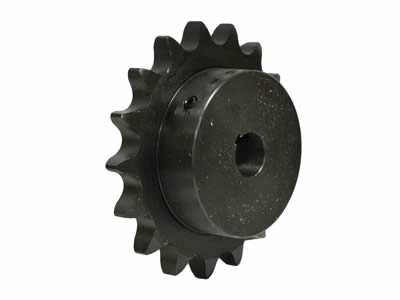

A piece of carbon steel type B ANSI roller chain sprocket with finished bore on the white background.
RCS-05: Finished bore – ANSI roller chain sprocket.

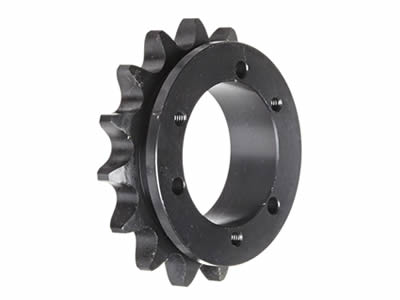

A carbon steel QD bushed ANSI roller chain sprocket on the white background.
RCS-06: QD bushed – ANSI roller chain sprocket.

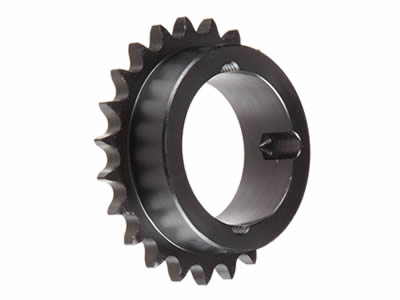

A carbon steel split taper bushed ANSI roller chain sprocket on the white background.
RCS-07: Split taper bushed – ANSI roller chain sprocket.
A single strand finished bore ANSI roller chain sprocket on the white background.
RCS-08: Single strand – ANSI roller chain sprocket.

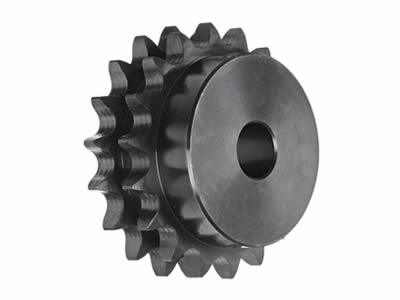

A double strand finished bore ANSI roller chain sprocket on the white background.
RCS-09: Multiple strand – ANSI roller chain sprocket.
  • According to the material
    • Carbon steel.
    • Stainless steel.
  • According to the strand
    • Single strand.
    • Multiple strand.
  • According to the bore type
    • Plain bore.
    • Finished bore.
    • QD Bushed Chain Sprocket.
    • Split Taper Bushed Chain Sprocket.
  • According to the type
    • Type A.
    • Type B.
    • Type C.
  • According to the pitches and specs
    • No. 25 – 1/4" pitch sprockets.
    • No. 35 – 3/8" pitch sprockets.
    • No. 41 – 1/2" pitch sprockets.
    • No. 40 1/2" pitch sprockets.
    • No. 50 – 5/8" pitch sprockets.
    • No. 60 – 3/4" pitch sprockets.
    • No. 80 – 1" pitch sprockets.
    • No. 100 – 1-1/4" pitch sprockets.
    • No. 120 – 1-1/2" pitch sprockets.
    • No. 140 – 1-3/4" pitch sprockets.
    • No. 160 – 2" pitch sprockets.
    • No. 180 – 2-1/4" pitch – plain bore sprockets.
    • No. 200 – 2-1/2" pitch – plain bore sprockets.
    • No. 240 – 3" pitch – plain bore sprockets.

Double pitch sprockets

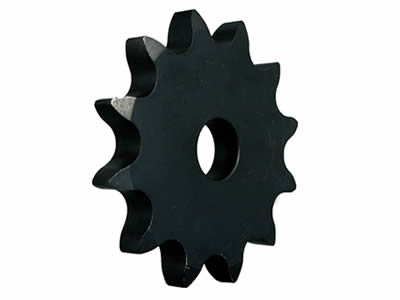

A piece of carbon steel type A double pitch sprocket on the white background.
RCS-10: Type A – double pitch roller chain sprocket.
A piece of carbon steel type B double pitch sprocket on the white background.
RCS-11: Type B – double pitch roller chain sprocket.

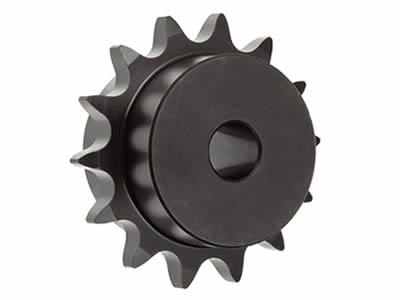

A piece of carbon steel Type C double pitch sprocket on the white background.
RCS-12: Type C – double pitch roller chain sprocket.

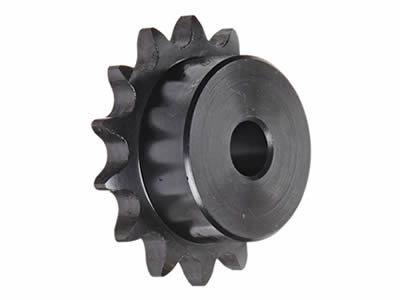

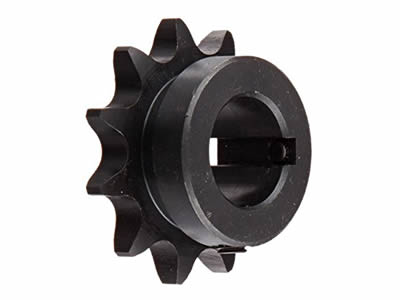

A piece of carbon steel type B double pitch sprocket with finished bore on the white background.
RCS-13: Finished bore – double pitch roller chain sprocket.

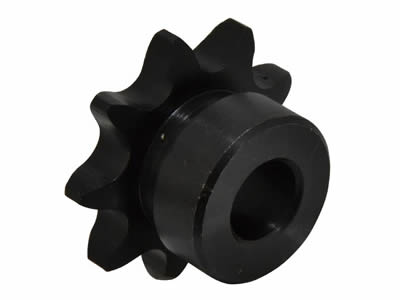

A piece of single strand carbon steel type B double pitch sprocket on the white background.
RCS-14: Single strand – double pitch roller chain sprocket.

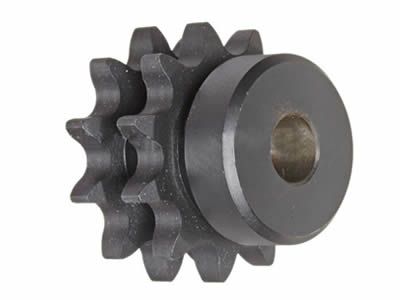

A piece of double strand carbon steel type B double pitch sprocket on the white background.
RCS-15: Multiple strand – double pitch roller chain sprocket.
  • According to the material
    • Carbon steel.
    • Stainless steel.
  • According to the strand
    • Single strand.
    • Multiple strand.
  • According to the type
    • Type A.
    • Type B.
    • Type C.
  • According to the pitches and specs
    • Standard roller double pitch sprocket for C2040/A2040 chain – 1" pitch.
    • Large roller double pitch sprocket for C2042 chain – 1" pitch.
    • Standard roller double pitch sprocket for C2050/A2050 chain – 1-1/4" pitch.
    • Large roller double pitch sprocket for C2052 chain – 1-1/4" pitch.
    • Standard roller double pitch sprocket for C2060/A2060 chain – 1-1/2" pitch.
    • Large roller double pitch sprocket for C2062 chain – 1-1/2" pitch.
    • Standard roller double pitch sprocket for C2080/A2080 chain – 2" pitch.
    • Large roller double pitch sprocket for C2080 chain – 2" pitch.

Double single sprockets

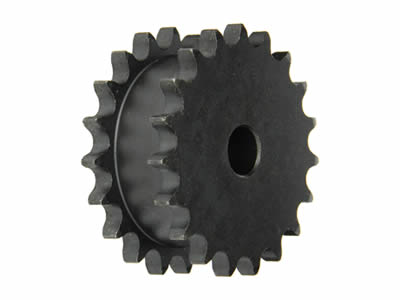

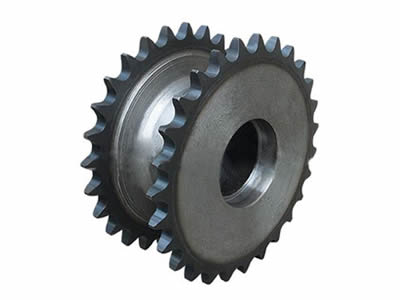

A carbon steel type A double single sprocket on the white background.
RCS-16: Carbon steel – double single sprocket.

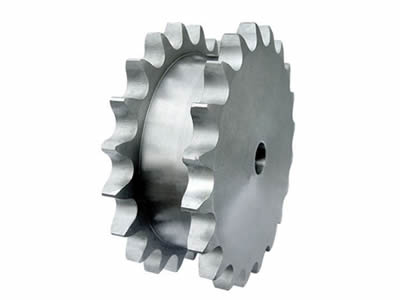

A stainless steel type A double single sprocket on the white background.
RCS-17: Stainless steel – double single sprocket.
A type A standard double single sprocket on the white background.
RCS-18: Type A – standard bore – double single sprocket.

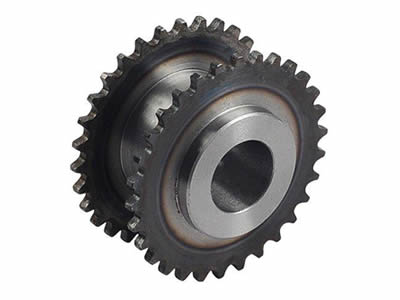

A type B standard double single sprocket on the white background.
RCS-19: Type B – standard bore – double single sprocket.

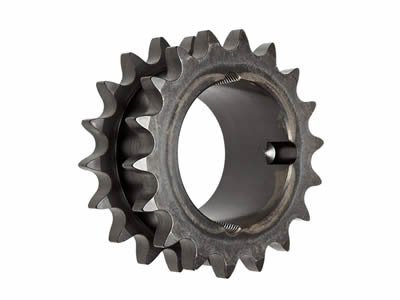

A carbon steel plain bore double single sprocket on the white background.
RCS-20: Plain bore – taper bushed – double single sprocket.

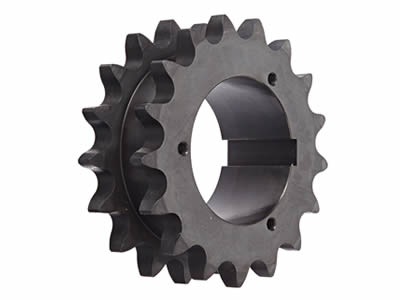

A carbon steel finished bore double single sprocket on the white background.
RCS-21: Finished bore – taper bushed – double single sprocket.
  • According to the material
    • Carbon steel.
    • Stainless steel.
  • According to the type
    • Type A.
    • Type B.
  • According to the bore type
    • Plain bore.
    • Finished bore.
    • Split Taper Bushed Chain Sprocket.
  • According to specs
    • Double single standard bore sprockets.
      • 40 double single sprockets.
      • 50 double single sprockets.
      • 60 double single sprockets.
      • 80 double single sprockets.
      • 100 double single sprockets.
    • Double Split Taper Bushed sprockets.
      • 40 double single sprockets.
      • 50 double single sprockets.
      • 60 double single sprockets.
      • 80 double single sprockets.
      • 100 double single sprockets.

Sprockets for double plus chain

A piece of carbon steel sprocket for double plus chain on the white background.
RCS-22: Double plus chain sprockets.

Sprockets for double plus chain is similar to the multiple strand ANSI single pitch sprockets on the appearance. But they are different in pitch size, teeth size and teeth type. The multiple strand ANSI single pitch sprockets has sharp teeth while the sprockets for double plus chain has a relatively flat teeth.
