Foaming Furnace Mesh Belt – Smooth Surface & Easy to Clean

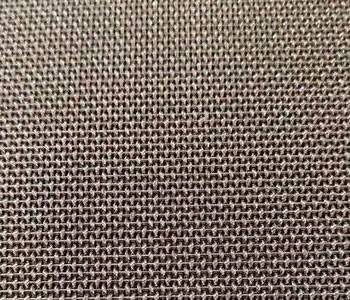

Foaming furnace mesh belt made of stainless steel wire mesh

Foaming furnace mesh belt is also known as stainless steel wire rope conveyor belt. It is designed and manufactured for applications like foaming furnace channels. This mesh belt is made of ropes and rods with reinforced edges for direct rolling operation. We weave and supply many rolls to our clients in the XPE foaming furnace line.

Features of foaming furnace mesh belt:

  • High temperature resistance & corrosion resistance
  • Abrasion resistant & high strength
  • Smooth and flat surface & easy to clean
  • Suitable for heat distributor opening
  • Easy to install & simple to run
  • Long working life and short downtime
Specification marking of foaming furnace mesh mesh belt

Specifications of foaming furnace mesh belt:

  • Material: SS304, SS316, SS309, etc.
  • Rod diameter (a): 0.4 mm – 3.0 mm
  • Cable wire diameter (b): 0.5 mm – 3.0 mm
  • Rod pitch (c): 1.0 mm – 12.0 mm
  • Cable wire pitch (d): 0.5 mm – 12.7 mm
  • Width: 1.05 m – 6.5 m
  • Length: 30.0 m – 90.0 m
  • Selvage: Loop edge or cut edge

Stock Specifications

Foaming Furnace Mesh Belt Stock
No. Warp (mesh) Weft (mesh)
1 20 (0.19 mm × 7 strand) 08
2 25/30 (0.13 mm × 7 strand) 34 (0.4 mm single wire)
3 30 (0.13 mm × 7 strand) 25
4 32 (0.13 mm × 7 strand) 28
5 35 (0.13 mm × 7 strand) 25 (0.4 mm single wire)
6 36 28

Applications of foaming furnace mesh belt:

  • Plastic, leather, non-woven and other machinery foaming furnace in the conveyor belt
  • Heating and drying of wood or wood chips, high strength filtration and protective or explosion-proof industries

Pictures of foaming furnace mesh belt:

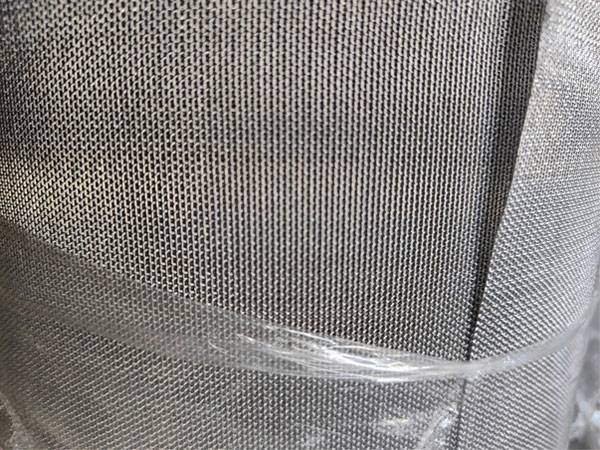

A roll of foaming furnace mesh belt wrapped in plastic film
A roll of foaming furnace mesh belt

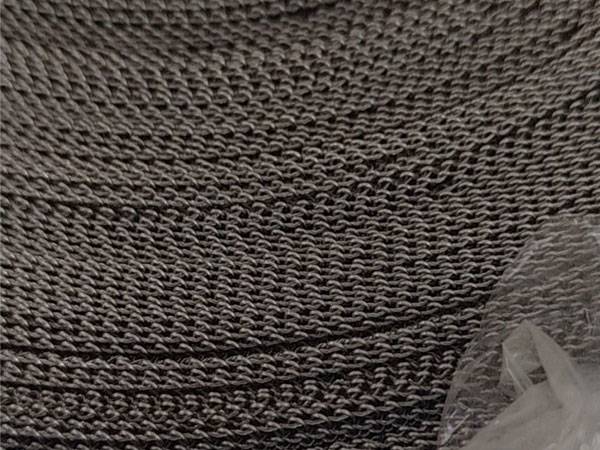

Observation of the foaming furnace mesh belt from the top of the packaging
Top view of the foaming furnace mesh belt in a roll

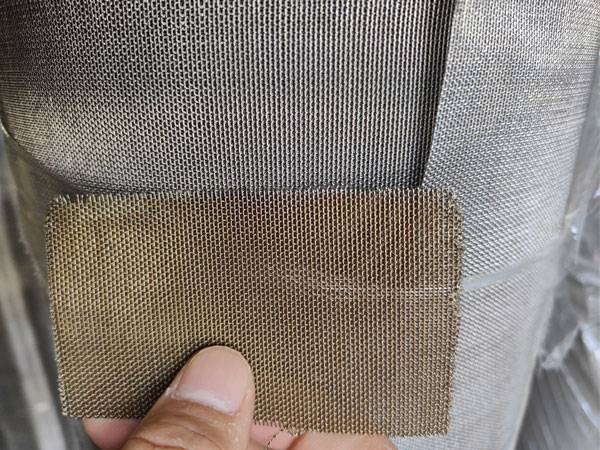

Material comparison between SS foaming furnace mesh belt and copper foaming furnace mesh belt
SS foaming furnace mesh belt and copper foaming furnace mesh belt

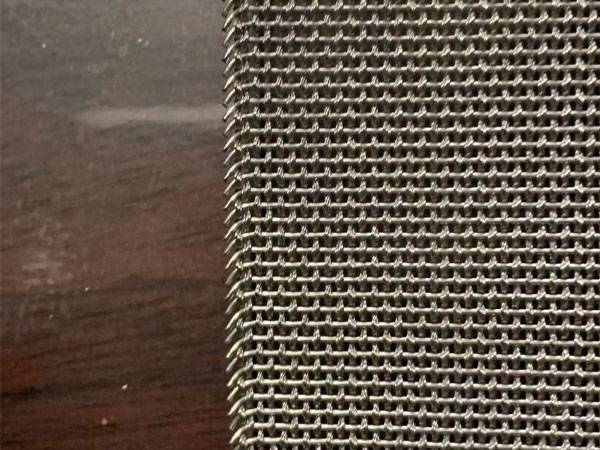

Foaming furnace mesh belt on the table
Foaming furnace mesh belt detail

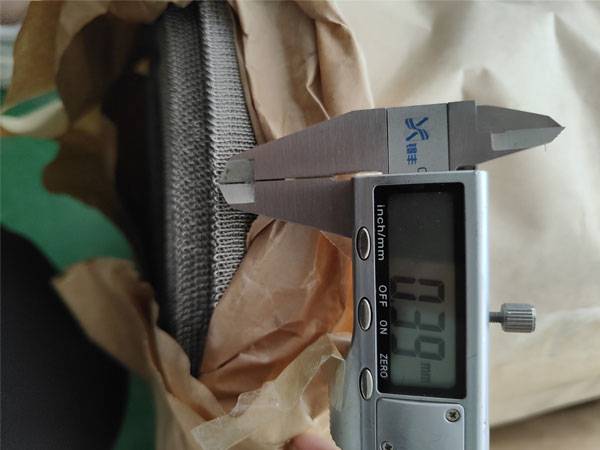

Measure cable wire diameter of the foaming furnace mesh belt with vernier caliper
Measure cable wire diameter of the foaming furnace mesh belt

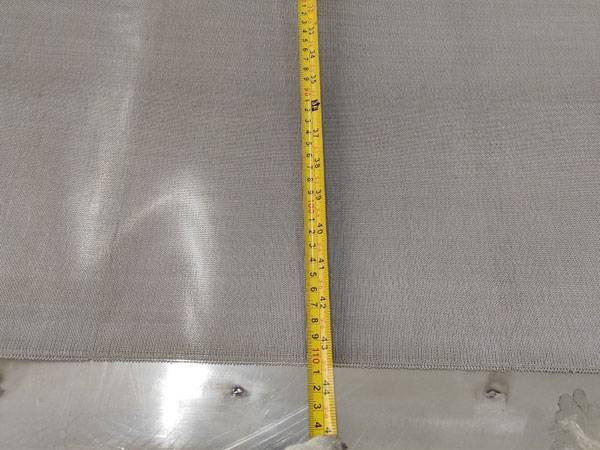

Measure the width of the foaming furnace mesh belt placed in the ground with tape
Measure cable wire diameter of the foaming furnace mesh belt
