Compound Weave Conveyor Belts - Small Products Conveying

Compound weave conveyor belts, also called as cord weave conveyor belts, refer to series of right and left spirals compound together to form a tighter conveying surface comparing with balanced or universal weave belts. This tightly woven structure makes compound weave conveyor belts ideal for baking, conveying small products and top heavy loads.

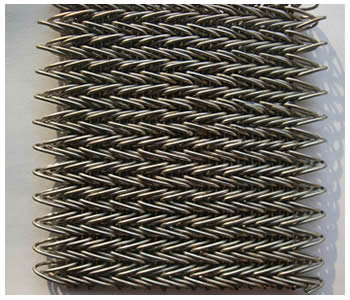

A piece of compound weave conveyor belt

Compound weave conveyor belt

Features:

  • High resistance against acid, alkaline, chemical, abrasion and corrosion.
  • Capable to work regardless of high temperatures.
  • Smooth conveying surface minimize marks and provide easy accurate conveying.
  • Long service life.

Applications:

  • Biscuits, tortillas, cookies and crackers baking
  • Heat treating of small products.
  • Hardening, tempering, quenching.
  • Cleaning, drying, cooking, freezing and salting.
  • Glass works, electrotechnical industry.
  • Serving as pasteurizing belt, furnace belts, etc.

Styles:
Compound weave conveyor belts are available in round spiral wire or flat spiral wire as your requirements. Meanwhile, it can be manufactured with upturned edge or standard welded edge as shown in the pictures for you to choose from.

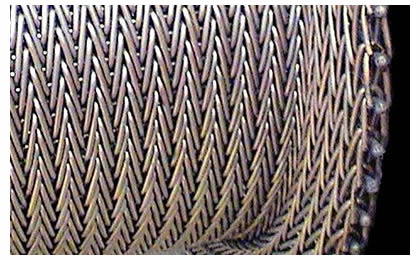

A compound weave conveyor belt with upturned edge

Upturned edge

A compound weave conveyor belt with welded edge

Welded edge

Details:

  • Material: carbon steel, SS 201, SS 304, SS 316, SS 314.
  • Pitch of spiral wires: 6mm to 20mm.
  • Pitch of cross rods: 6mm to 20mm.
  • Wire diameter: 1.2 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm.
  • Belt width: 200 mm to 3,000 mm.
  • Diameter of cross wire: 0.9 mm to 2.6 mm.
  • Cross rod number per pitch: 3, 4, 5 or 6 as your request.
  • Temperature range: -50 °C to 1,150 °C.
  • Special specifications are available.
Main specifications of compound weave conveyor belts
Type Rod number for a spiral Spiral number in 12" Cross rod number in 12" Cross rod diameter Spiral wire diameter
CWCB-1 3 53 102 0.47" 0.47"
CWCB-2 3 41 102 0.54" 0.54"
CWCB-3 3 34 82 0.08" 0.63"
CWCB-4 4 33 84 0.08" 0.63"
CWCB-5 5 27 83 0.08" 0.63"
CWCB-6 3 28 72 0.08" 0.08"
CWCB-7 3 20 50 0.12" 0.12"
CWCB-8 3 60 132 0.141" 0.141"
CWCB-9 3 60 132 0.041" 0.041" × 0.035"
CWCB-10 3 84 157 0.035" 0.025"
CWCB-11 3 84 157 0.035" 0.03" × 0.02"
CWCB-12 3 114 192 0.028" 0.028"
CWCB-13 3 140 186 0.032" 0.025"
